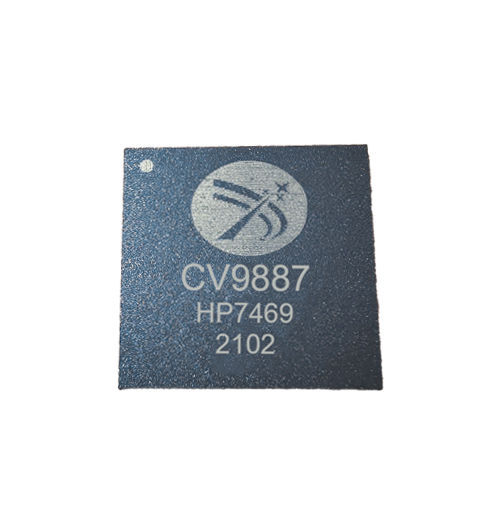

CV9887 basic description

CV9887 integrates high-performance 10bit video ADC and 24bit audio ADC as well as a mature and reliable HDMI1.3 encoding and sending module,

Support analog VGA or analog YPbPr signal and analog/digital audio signal to standard HDMI signal output, the chip will not scale the screen resolution,

The picture quality is close to lossless from the naked eye comparison.

The CV9887 package is only 88PIN, the size is only 10x10mm, low power consumption and industrial-grade design, supporting long-term work in an environment of -30 to 85 degrees,

Rich audio and video interfaces, which can realize VGA to HDMI, component to HDMI, audio ADC, video ADC and other functions, which are very suitable for

All kinds of set-top boxes, players, conversion boxes, industrial control equipment do VGA/color difference and HDMI interface conversion, video digital-to-analog conversion, audio digital-to-analog conversion.

Features

Analog video input

⚫ Built-in three-channel 10-bitADC.

⚫ The ADC maximum analog sampling rate is up to 192 MSPS.

⚫ Support RGBHV/RGBS/YPbPr/YCbCr signal input.

⚫ Support automatic OFFSET calibration.

⚫ Automatic GAIN balancing is supported.

⚫ Automatic PHASE adjustment is supported.

⚫ Support YPbPr  480i/p, 576i/p, 720p25/30/50/60,

1080i50/60, 1080p24/25/30/50/60 and other mode input.

⚫ Support VGA signal up to 1920x1200.

⚫ Support automatic mode detection.

⚫ Support copy protection.

Analog audio input

⚫ Advanced multi-bit enhanced ADC architecture

⚫ 24-bit analog-to-digital conversion.

⚫ Support audio sampling rate up to 108khz.

⚫ Built-in low-delay digital filter module.

Digital audio input

⚫ The S/PDIF interface supports PCM, Dolby Digital, DTS.

⚫ I2S input, the sampling rate range is 32~192Khz.

⚫ The frame rate of digital audio mode supports up to 192Khz.

⚫ Digital audio is compatible with IEC 60958 and IEC 61937.

Digital audio output

⚫ I2S output.

Digital video input

⚫ 24B RGB/YUV input.

⚫ 16B YUV 422 input

⚫ 8B YUV input

⚫ SDR/DDR input

⚫ Separate sync/embedded sync input

Digital video output

⚫ 24B RGB/YUV output.

⚫ 16B YUV 422 output

⚫ 8B YUV output

⚫ SDR/DDR output

⚫ Separate sync/embedded sync output

HDMI output

⚫ Support HDMI 1.3 and DVI1.0 output, support 24bit color depth,

Support 1080P60 and UXGA, the rate is up to 170Mhz.

⚫ Support HDCP1.3 version and compatible with CEC 1.3 version.

⚫ Support CEC function and Hot Plug.

Control and packaging

⚫ 88pin plastic QFN package, the size is 8mmX8mm.

⚫ 3.3/1.8V power supply, the maximum current is about 180ma.

⚫ The working environment temperature supports -30 to 85 degrees Celsius.

⚫ PB-free and RoHS certification.
