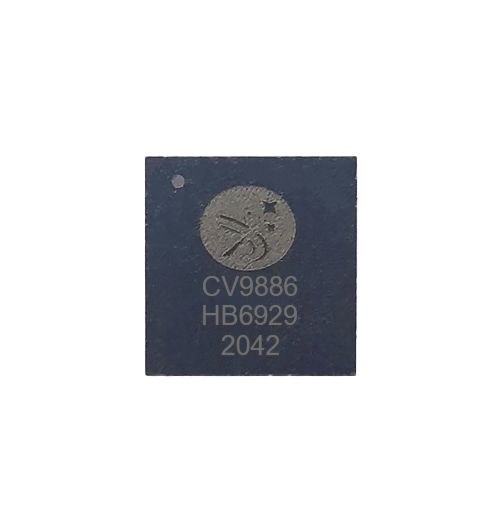

Basic description of CV9886

CV9886 integrates high-performance 10bit video ADC and 24bit audio ADC, as well as a mature and reliable HDMI1.3 encoding and sending module. It supports analog VGA or analog YPbPr signal and analog/digital audio signal to standard HDMI signal output. The chip will not distinguish the picture.

The image quality is close to lossless from the naked eye comparison.

CV9886 only has 56PIN, size is only 7x7mm, low power consumption and industrial-grade design, supports long-term work under -30 to 85 degrees, and can realize VGA to HDMI, component to HDMI and other functions on a single chip. It is very suitable for all kinds of set-top boxes, players,

Conversion box, industrial control equipment to do the conversion of VGA and HDMI interface.

CV9886 embeds a 32-bit ARM Cortex™-M0 processor with a speed of up to 48Mhz, realizing a single-chip system without the need for an external control module.

Features

Analog video input

l Built-in three-channel 10-bitADC.

l  The maximum analog sampling rate of ADC is up to 192 MSPS.

l  Support RGBHV/RGBS/YPbPr/YCbCr signal input.

l Support automatic offset (OFFSET) calibration.

l  Support automatic gain (GAIN) balance.

l  Support automatic phase (PHASE) adjustment.

l  RGB/UV enhanced gain offset color correction.

l  Support YPbPr 480i/p, 576i/p, 720p25/30/50/60, 1080i50/60, 1080p24/25/30/50/60 and other input modes.

l  Support VGA signal up to 1920x1200.

l  Support automatic mode detection.

l  Support copy protection.

Analog audio input

l  Advanced multi-bit enhanced ADC architecture.

l  24-bit analog-to-digital conversion.

l  Support audio sampling rate up to 108khz.

l  Built-in low-delay digital filter module.

Digital audio input

l  Four I2S inputs, the sampling rate range is 32~192Khz.

l  S/PDIF interface supports PCM, Dolby Digital, DTS.

l  The frame rate of digital audio mode supports up to 192Khz.

l Digital audio is compatible with IEC 60958 and IEC 61937.

HDMI output

l  Support HDMI 1.3 and DVI1.0 output, support 24bit color depth, support 1080P60 and UXGA, rate up to 170Mhz.

l  Support HDCP1.3 version and compatible with CEC 1.3 version.

l Support CEC function and hot plug (Hot Plug).

Control and packaging

l  Built-in 32-bit CORTEX M0+ processor, without external control module.

l  56pin plastic QFN package, the size is 7mmX7mm.

l  3.3/1.8V power supply, the maximum current is about 180ma.

l Working environment temperature supports -30 to 85 degrees Celsius.

l PB-free and RoHS certification.
